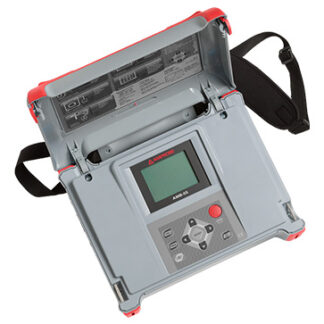

Amprobe AMB-55 High Voltage Insulation Tester

Description Eliminate downtime, predict the lifetime of equipment, and reduce safety hazards with the Amprobe AMB-55 Insulation Resistance Tester that tests voltage and step voltage to 5,500 V. With the Amprobe AMB-55, you can accurately test cables, transformers, motors, surge arrestors, and generators in noisy environments such as high-voltage switchyards. It also boasts built-in noise rejection filters and shielded test leads to provide high EMI immunity. Specifications FEATURE AMPROBE AMB-55 Insulation resistance 0 O → 999 kO, 1.00 O → 9.99 MO, 10.0 MO → 100.0 MO, 1.00 O- 9.99 GO Test voltage and step voltage display range 0 V → 5500 V Current display range 0.00 nA → 9.99 nA, 10.0 nA → 99.9 nA, 100 nA → 999 nA, 1.00 µA → 9.99 µA, 10.0 µA → 99.9 µA, 100 µA → 999 µA, 1.00 mA → 5.50 mA Dielectric absorption ratio (DAR) 0.01 → 100.0 Polarization index (PI) 0 → 100.0 Dielectric discharge test (DD) 0 → 100.0 Leakage current display range 0 mA → 5.50 mA External voltage measurement 0 V → 600 V Capacitance measurement 0 nF → 99.9 nF, 100 nF → 999 nF, 1 µF → 50.0 µF Download PC interface • Memory size 128 kB Check out other Insulation Testers Available With Us
