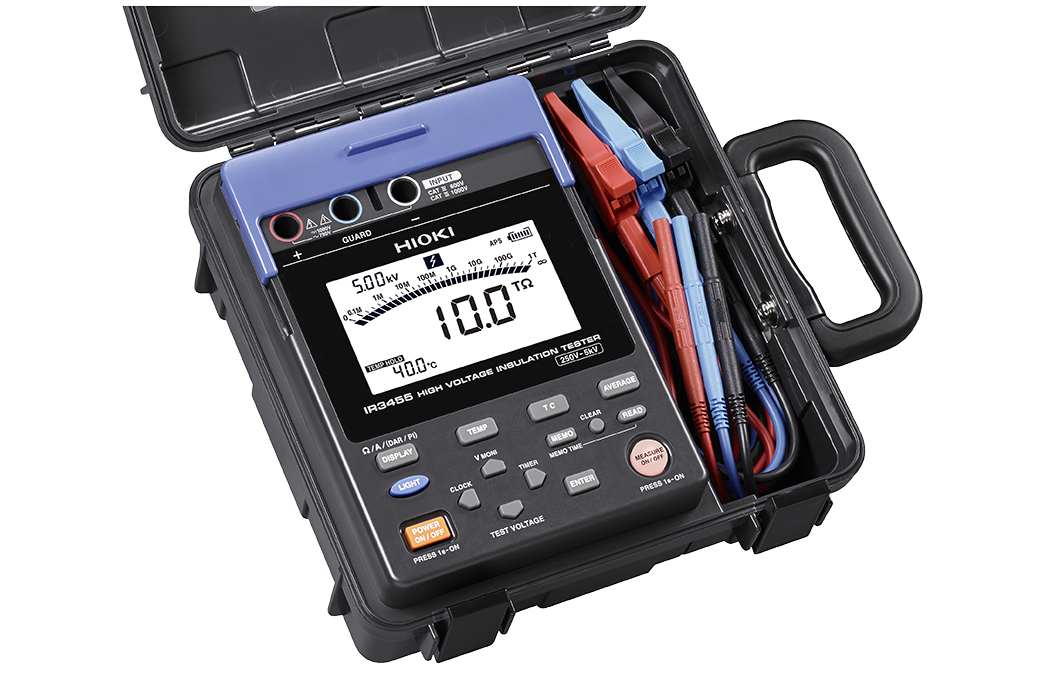

Hioki IR3455 5kV Insulation Tester (Megger)

Description This Hioki 5kV insulation resistance tester (megger) or megohmmeter features all-in-one designs including built-in rugged cases and test lead storage compartments. The Hioki IR3455 is a 5-range, 250 V to 5000 V digital insulation resistance tester offering up to 10 TΩ of insulated resistance testing.  High-performance features include bar graphs, built-in memory, leak current, and voltage testing, and DAR and PI calculation capabilities to help shorten work time associated with field insulation testing. Extended Operating Temperature Range with this 5kV insulation tester The temperature range in which the IR3455 can be used and has been expanded to -10°C to 50°C (14°F to 122°F). This allows reliable use throughout the year, regardless of temperature. The Hioki IR3455 offers Data Memory Function The IR3455 provides a manual storage function for 100 data and a logging function for 10 data (360 times). Date and time are also stored, reducing the need for handwritten notes. White backlight A white backlight makes the IR3455 easy to operate even in low-light conditions. Visibility has improved compared to the legacy model, making it easier to confirm measurement values. Bundled Software Use the included application software to easily graph step voltage test data and create reports. Use the Hioki IR3455 megger for a wide range of Insulation resistance measurements Select a test voltage from 250 V, 500 V, 1.00 kV, 2.50 kV, and 5.00 kV. More finely graded settings are also possible. When the measurement is completed, the unit shows the insulation resistance value, test voltage (location and actual output), leakage current, DAR, PI, and elapsed time. Save measurement conditions and measurement results to internal memory, and view them on a computer. You can learn more about using a 5kV insulation tester through this link: How to use a Hioki Insulation Tester   Check out our other Hioki Insulation tester models: Hioki IR4053-10 Insulation Tester, Hioki IR4017-20 Analog Insulation Tester
